A measured building survey is the single most reliable way to understand exactly what you are working with before a refurbishment project begins, yet it is often the first item cut from a budget. That decision rarely ages well. Ask any architect who has designed a staircase around a wall that turned out to be 190mm further over than the old drawings suggested, or any contractor who has priced a ceiling void that did not exist. Refurbishment work punishes assumptions, and most of the advice published on this subject skips over the practical detail that actually determines whether a survey adds value or simply adds cost.

This article explains what a measured building survey involves, why it matters so much on refurbishment and renovation projects specifically, and what to look for when commissioning one in the UK.

What a Measured Building Survey Actually Involves

A measured building survey, sometimes called an architectural survey or existing building survey, is a precise record of a building as it stands today. Surveyors capture the internal and external dimensions of the structure and produce scaled drawings and digital data that design teams can rely on.

Typical deliverables include:

• Floor plans showing walls, openings, structural elements, fixtures and room layouts
• Elevations recording external facades, window positions, string courses and roof lines
• Cross sections cutting through the building to show floor-to-ceiling heights, structural zones and level changes
• 3D point clouds and models where laser scanning has been used
• CAD or BIM files formatted for the design team’s software

The critical distinction is between measured building surveys and condition surveys. A condition survey tells you about defects, damp and structural health. A measured survey tells you the geometry. Refurbishment projects usually need both, but they answer entirely different questions and confusing the two is a common and expensive mistake.

Why Refurbishment Projects Are Different

New build projects start from a clean site and a coordinated design. Building refurbishment starts from whatever the last hundred years left behind.

The reality inside most existing UK buildings is messier than any drawing suggests. Victorian and Edwardian properties were built by eye, not by grid. Walls lean, floors slope, and no two storeys stack identically. Post-war commercial buildings often carry decades of undocumented alterations: partitions moved, risers rerouted, mezzanines inserted, openings blocked up and plastered over. Even buildings from the 1990s frequently differ from their as-built drawings, assuming those drawings still exist at all.

This is why relying on original construction drawings, lease plans or estate agent floor plans for refurbishment design is so risky. Those documents were produced for a different purpose, at a different accuracy, and often before the building was altered. An existing building survey replaces inherited guesswork with verified building measurements, and every downstream decision improves as a result.

What Actually Matters When Commissioning a Measured Building Survey

Plenty of guides tell you a survey is “important”. Fewer explain the decisions that determine whether the survey you commission is actually fit for your refurbishment. These are the factors that matter in practice.

1. Survey specification and level of detail

Not every project needs every detail surveyed. A light-touch office refit might only need floor plans showing walls, doors, windows and structural columns. A full cut-and-carve refurbishment of a listed building might need every cornice, sill height and skirting profile recorded.

The industry reference point in the UK is the RICS guidance on measured surveys of land, buildings and utilities, which sets out accuracy bands and detail levels. A competent survey company will ask what the data is for before quoting, because the specification should follow the design intent, not the other way round. If a surveyor quotes without asking how the drawings will be used, treat that as a warning sign.

2. Accuracy tolerances and why millimetres matter

Accuracy sounds abstract until it costs you money. Consider a few refurbishment scenarios where tolerance is the whole game:

• Fitting a new lift shaft into an existing stair core, where 20mm decides whether the car fits
• Prefabricated bathroom pods or modular units manufactured off site to survey dimensions
• Steelwork fabricated to span between existing walls that are not parallel
• Fire compartmentation drawings where wall thicknesses and junctions must be recorded correctly

Modern 3D laser scanning captures millions of measurement points with millimetre-level precision, which is why it has become the default capture method for refurbishment surveys. The scanner records everything in view, so if the design changes six months later and the architect suddenly needs a dimension nobody thought to ask for, it is already in the point cloud. That single characteristic has saved more refurbishment programmes than any other surveying development of the last twenty years.

3. The right deliverables for your design team

A survey is only useful in the format your team can work with. Before commissioning, confirm:

• Whether the design team works in 2D CAD or a BIM environment such as Revit
• What layering conventions and drawing standards they expect
• Whether a point cloud should be supplied alongside the drawings
• What scale and sheet sizes the drawings need to support

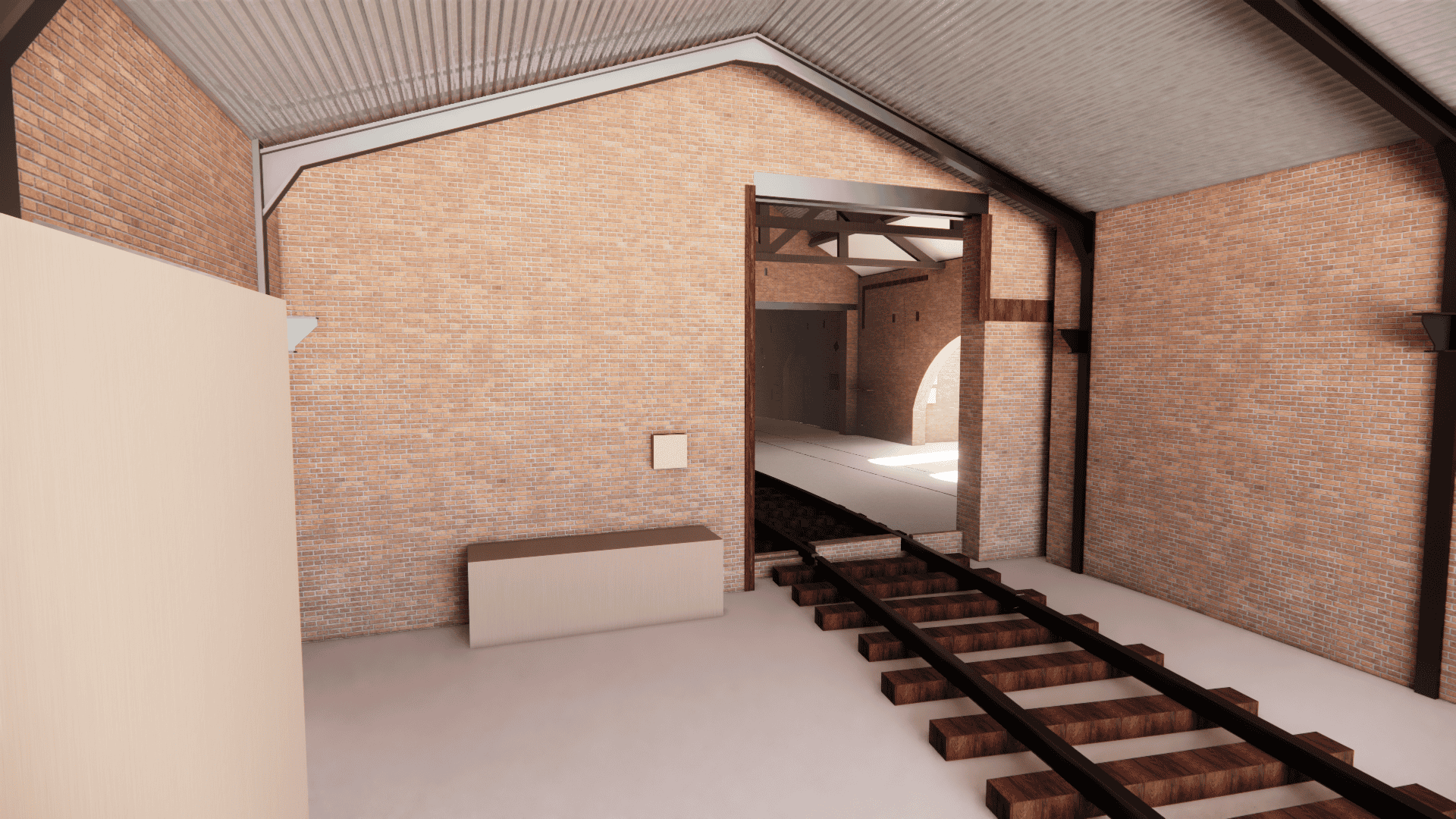

For refurbishment projects moving into BIM, the survey can be delivered as an as-existing Revit model, giving the architect a coordinated starting point rather than a stack of flat drawings to redraw. On heritage projects, high-resolution elevations and detailed sections often matter more than a model. The point is that deliverables are a decision, not a default.

4. Access, occupation and phasing

Refurbishment surveys frequently take place in buildings that are still in use. Offices with staff at desks, residential blocks with tenants in situ, schools that can only be accessed during holidays. A good survey team plans around this rather than treating it as an inconvenience.

Practical questions to resolve early include out-of-hours access, security clearances, locked plant rooms and roof access, and whether ceiling voids and floor voids need opening up. Every unsurveyed space becomes an assumption in the design, and assumptions are precisely what the survey exists to remove.

5. Levels, datums and how the building relates to its site

A frequently overlooked element of building refurbishment is the relationship between the building and the ground around it. Extensions, level-access thresholds, drainage alterations and external works all depend on knowing floor levels relative to external ground levels. A measured building survey tied into a topographical survey on a common datum gives the design team one coordinated dataset instead of two documents that disagree at the front door. Where drainage is being altered, a CCTV drainage survey can be added so below-ground constraints are understood before the design is fixed.

Real-World Scenarios Where the Survey Earns Its Fee

Abstract benefits are easy to claim, so here are the situations where measured surveys demonstrably change outcomes on UK refurbishment projects.

Converting a Victorian building into apartments. Floor-to-ceiling heights in older buildings vary from room to room, and space standards for new dwellings leave little margin. Accurate sections reveal early whether a loft conversion clears minimum head heights or whether a mezzanine is viable, before design fees are spent on schemes that cannot be built.

Office refurbishment and Cat A/Cat B fit-out. Net internal area drives rental value, and landlords need certainty. Accurate floor plans support area referencing under the RICS property measurement standards, while ceiling void and raised floor dimensions determine whether new services can actually be routed. Discovering a shallow void after the mechanical design is complete is a familiar and avoidable disaster.

Listed building refurbishment. Heritage consent applications demand accurate existing drawings, and conservation officers will notice when elevations do not match the building. Laser scanning also creates a permanent digital record of historic fabric before intervention, which is increasingly expected on significant buildings.

Facade retention and structural alteration. Where a building is being gutted behind a retained facade, engineers need to know exactly where that facade sits in three dimensions. Monitoring during the works then measures movement against the original survey baseline.

In each case the pattern is the same. The survey does not just document the building. It answers a commercial question: can this scheme work, and what will it really take to build it?

The Insight Most Guides Miss: Surveys Are Risk Pricing

Here is the perspective that experienced developers understand and first-time refurbishers usually learn the hard way. Contractors price uncertainty.

When a tender package is built on assumed dimensions and incomplete existing drawings, every contractor pricing the job adds contingency to cover the unknowns, or prices low and recovers the difference through variations once work starts. Either way, the client pays for the missing information. Industry analyses of refurbishment projects consistently show that unforeseen existing conditions are among the leading causes of cost overrun and programme delay.

A measured building survey converts unknowns into facts before contracts are signed. The cost of a professional survey on a typical refurbishment is usually a fraction of one per cent of the construction value. A single avoided variation, one steel that fits first time, one design iteration that did not need to happen, and the survey has paid for itself. Viewed properly, the survey is not a project expense. It is the cheapest risk reduction available on the entire programme.

There is also a quieter benefit that rarely appears in marketing material: coordination. When the architect, structural engineer and services engineer all work from the same verified dataset, the arguments about whose dimensions are correct simply disappear. Fewer RFIs, fewer clashes, fewer site meetings spent measuring things that should already have been measured.

Choosing a Measured Survey Provider in the UK

Survey quality varies more than clients expect, and the cheapest quote is frequently the most expensive decision. When comparing providers for a measured survey in the UK, look for:

• Professional regulation. RICS-regulated firms work to defined professional and ethical standards, with accountability behind the work.
• Quality management. ISO 9001 certification indicates documented checking procedures rather than drawings issued straight from the field.
• The right technology, used properly. 3D laser scanning, total stations and GNSS are standard tools, but the value lies in how the data is processed, checked and translated into usable drawings and models.
• Refurbishment experience. Surveying an occupied 1930s hospital wing is a different discipline from surveying a warehouse. Ask for examples of comparable projects.
• Breadth of service. Refurbishment projects often need topographical surveys, utility surveys, drainage surveys or 3D modelling alongside the building survey. One coordinated provider means one datum, one point of responsibility and no gaps between datasets.

Premier Surveys has been delivering measured building surveys across the UK since 1989, working from offices in Nottingham and London for architects, developers, contractors and building owners. The company is RICS regulated and certified to ISO 9001:2015, and combines laser scanning, drone survey and traditional techniques to produce floor plans, elevations, sections, point clouds and BIM models tailored to each project’s specification.

Frequently Asked Questions

How long does a measured building survey take? Site capture for a typical house or small commercial unit takes one to two days with laser scanning. Larger or more complex buildings take longer, and drawing production typically follows within one to three weeks depending on the deliverables specified.

How much does a measured building survey cost in the UK? Cost depends on the building’s size, complexity, access and the level of detail required. Because specification drives price, a reputable surveyor will ask about the project before quoting rather than offering a flat rate.

Do I need a measured survey if I already have old drawings? Almost always, yes. Historic drawings record intent, not reality, and rarely reflect later alterations. At minimum, old drawings should be verified against fresh building measurements before any design work relies on them.

Get the Building Right Before You Change It

Every successful refurbishment starts with an honest picture of the existing building. A properly specified measured building survey gives your design team verified geometry, your contractor certainty to price against, and you a programme built on facts rather than hope.

If you are planning a refurbishment or renovation project anywhere in the UK, speak to Premier Surveys about the right survey specification for your building. Call the team or visit premiersurveys.co.uk to discuss your project.
